A Comprehensive Guide to LED Display Modules
Everything you need to know about types, features, applications and selection of LED display modules in 2025
Consult Expert Start Reading
What Are LED Display Modules
An LED display module is a self-contained, fundamental building block of larger LED display screens, such as video walls, digital billboards, and public signage. It is a compact unit that integrates all the necessary components to display a portion of an image or video.
In essence, LED display modules make it easier to design and implement large-scale LED video walls and dynamic visual display systems. Because they come as ready-to-use components. You don’t need to assemble individual LEDs and components yourself.
Modular & Scalable Design
Panels can be combined to create displays of any size or aspect ratio.
Long Lifespan
Stable performance for 100,000 hours of operation.
Durable & Weather-Resistant
Outdoor modules offer protection against rain, dust, and harsh conditions (IP-rated).
Easy Maintenance
Front or rear-access designs simplify repairs and module replacement.
Common Applications
LED display modules are used across numerous industries and applications due to their adaptability and performance
Digital Billboards
Large outdoor screens for advertising with high brightness and weather resistance
Indoor Video Walls
Seamless, high-resolution displays used in malls, offices, studios, and conference rooms.
Stage & Event Backdrops
Modular screens for concerts, exhibitions, trade shows, live events and more.
Sports Stadium Screens
Scoreboards, perimeter LED banners, and replay screens.
Transportation Hubs
Real-time information displays in airports, train stations, and bus terminals.
Control Rooms & Command Centers
High-precision, reliable displays for monitoring data and operations.
Retail & Storefront Displays
Eye-catching screens that promote products, offers, and brand visuals.
Corporate Lobbies & Showrooms
Dynamic visual displays that elevate brand presence and customer experience.
Education & Public Spaces
LED walls for lecture halls, auditoriums, museums, or public space to display presentations, information, and more.
Types of LED Display Modules Available Today
Understanding the different types of LED display modules helps in selecting the right solution for your specific needs
Categories By Application / Environment

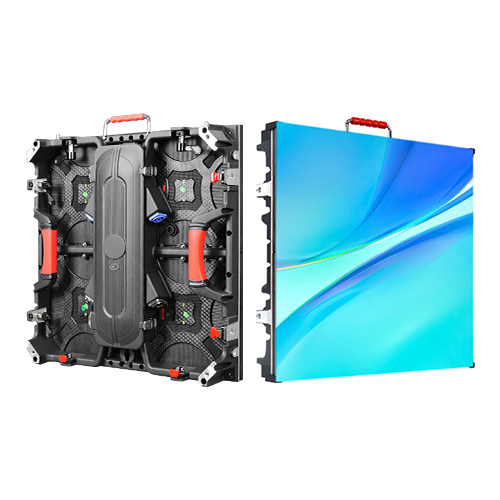

Rental / Event LED Modules
Quick-setup, durable modules built for touring events, concerts, exhibitions, and stage backdrops.
Indoor LED Modules
High-resolution panels designed for close-range viewing in malls, offices, studios, and retail spaces.

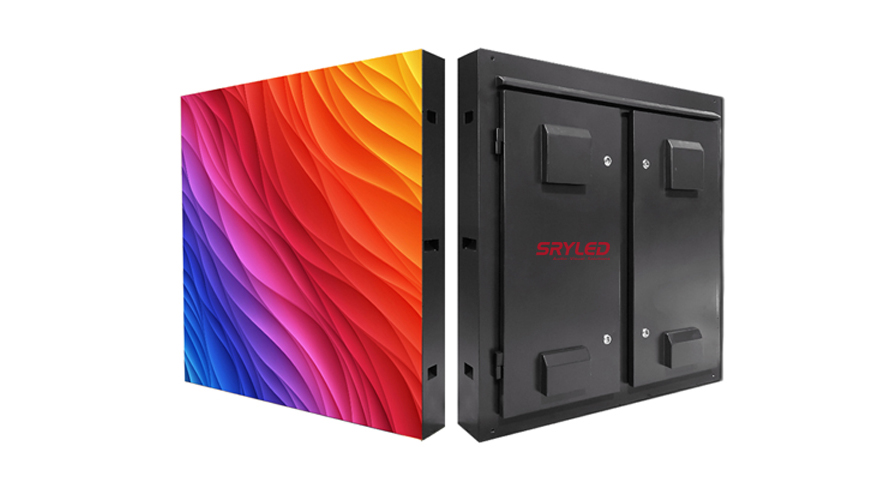

Outdoor LED Modules
Weather-resistant, ultra-bright modules ideal for billboards, building facades, and outdoor signage.
Fine-Pitch LED Modules
Ultra-HD modules with small pixel pitches, perfect for boardrooms, control rooms, and premium displays.
Flexible / Curve LED Modules
Bendable panels for creative installations, curved screens, stage sets, and unique shapes.
Transparent LED Modules
Lightweight, see-through displays for glass surfaces, shop windows, and architectural designs.
Categories By Packaging Technology
SMD Modules
Surface Mount Device (SMD) modules are the most common type, featuring small LEDs mounted directly on the circuit board.
Best For: The most versatile option, used for both high-resolution Indoor Video Walls and modern Outdoor Displays with smaller pitches.
GOB Modules
Glue-on-Board(GOB) . An enhancement applied to standard SMD modules. After assembly, a thick layer of special protective glue or resin is applied over the front surface of the LEDs.
Best For: rental/staging displays, fine-pitch displays or billboards.
COB Modules
Chip-on-Board (COB) modules. The bare LED chips are mounted directly onto the PCB substrate and then sealed under a single, unified layer of protective resin or epoxy.
Best For: Premium, indoor displays requiring the absolute highest resolution and durability
How to Select the Right Module
Choosing the appropriate LED display module requires considering several key factors to ensure optimal performance for your specific application
Define the Environment and Protection Needs
Indoor vs. Outdoor:
- Outdoor modules need high brightness (5000+ nits) for sunlight visibility and a high IP rating (e.g., IP65) for weather protection.
- Indoor modules require lower brightness and no IP rating, focusing on detail for close-up viewing.
Action: Choose the right brightness and IP rating based on your installation location.
Select the Optimal Pixel Pitch (P)
Pixel Pitch (P in mm) is the distance between the centers of adjacent pixels, and it dictates the clarity and optimal viewing distance of the screen.
- Minimum Viewing Distance(meters) ≈ Pixel Pitch(mm).
- Example: For an audience viewing from 3 meters away, a P3mm or smaller module is ideal.
Action: Measure the closest and furthest expected viewing distance and choose the corresponding Pixel Pitch.
Specify Performance and Budget
Once the physical requirements are met, optimize the module for video quality and cost.
- Size of the display and installation constraints
- Refresh rate and resolution
- Balance quality with budget
The best choice depends on where the display will be used, how it will be viewed. And most importantly, match your budget.
Certifications & Warranty
CE / RoHS Certified(some are ETL / CB certified)
3–5 Year Warranty on Modules
Ultra-Bright & Vivid
High-lumen panels ensure crisp, clear visuals, even in bright outdoor environments.
Precise Color & Image Quality
Full-color, high contrast, and smooth refresh rates make every display look stunning.
Indoor & Outdoor Solutions
Durable, weather-resistant modules for both indoor and outdoor installations.
Easy Installation & Maintenance
Modular design and front/rear access allow fast setup and hassle-free servicing.
Ready to Upgrade Your Display?
Make informed decisions about LED display modules for your business or needs with our expert guidance
Frequently Asked Questions
Answers to common questions about LED display modules
What pixel pitch should I choose for my LED display?
Pixel pitch depends on the viewing distance. Smaller pixel pitches (e.g., 1.2–3mm) are ideal for close-up viewing, while larger pitches (e.g., 6–10mm+) work well for long-distance or outdoor displays.
How long do LED display modules last?
High-quality LED modules typically last 50,000–100,000 hours, depending on usage and environmental conditions.
Are your LED modules weatherproof?
Outdoor modules are IP65-rated or higher, protecting against rain, dust, and harsh weather.
How do I maintain or replace a module?
Modules are designed for easy front or rear access, making maintenance, cleaning, and replacement simple and fast.
Are your LED modules compatible with all controllers?
We provide compatibility guidelines for controllers and power supplies, and our team can recommend the right solutions for your setup.
